In the world of precision manufacturing, choosing the right material can make all the difference. When it comes to balancing strength and weight, two metals often come into focus: titanium and aluminum. These materials are not just known for their individual strengths but also for their versatility in demanding applications, from aerospace engineering to medical devices.

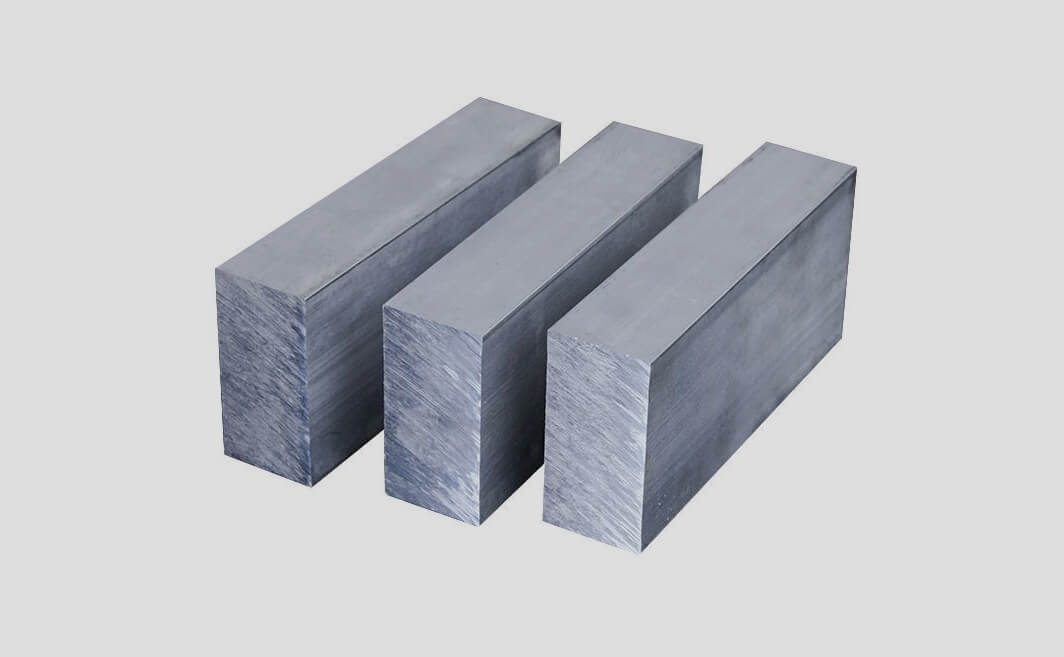

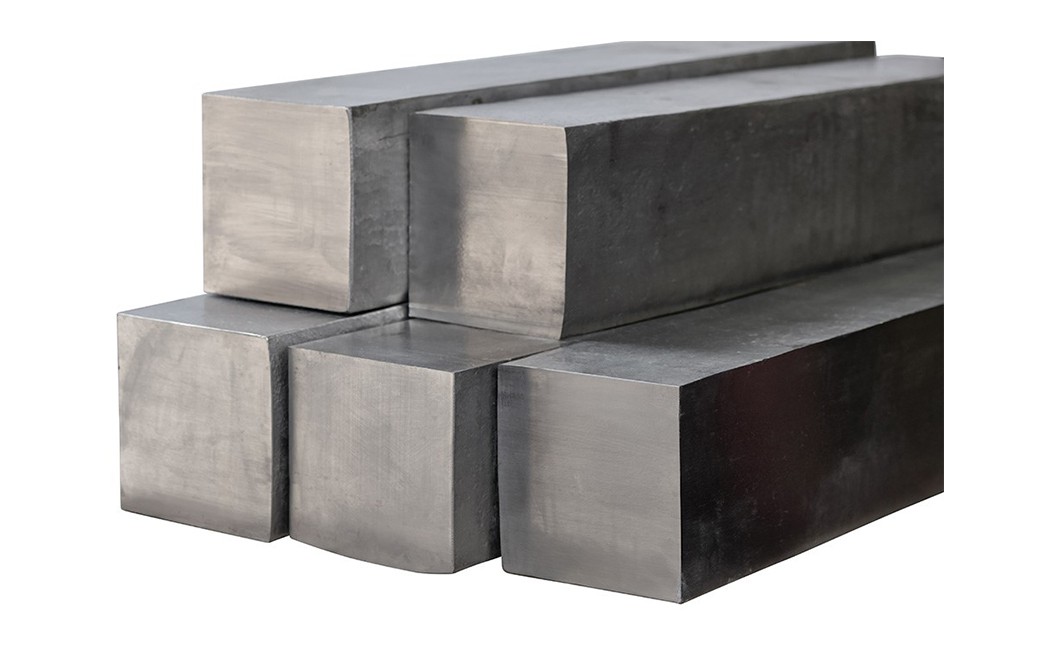

Aluminum stands out for its impressive lightness, being a fraction of the weight of steel, yet it offers enough strength to be used in everything from automotive parts to consumer electronics. Titanium, on the other hand, is celebrated for its exceptional strength, rivaling that of much heavier metals, and its ability to withstand extreme conditions. While it is denser than aluminum, its superior strength allows engineers to use less material to achieve the same structural integrity, making it indispensable in high-stakes environments like aircraft and spacecraft construction.
As we dive deeper into the properties and machining characteristics of these two metals, we’ll explore how their unique attributes make them the go-to choices for different industrial needs.
Understanding the fundamental properties of aluminum and titanium is crucial in determining their suitability for various applications in CNC machining. The table below provides a comparison of key material properties between these two metals:
| Material | Process | Tensile Strength | Elongation | Hardness |
|---|---|---|---|---|
| Titanium (Ti 6Al-4V) | DMLS | 172 ksi (1186 MPa) | 10% | 40 HRB |
| Aluminum (AlSi10Mg) | DMLS | 35 ksi (241 MPa) | 10% | 45 HRB |
| Aluminum 6061-T651 | CNC | 40 ksi (276 MPa) | 17% | 95 HBW 10/500 |
| Aluminum 7075-T651 | CNC | 83 ksi (572 MPa) | 11% | 85 HBW 10/500 |
| Titanium (Grade 5 Ti 6Al-4V) | CNC | 138 ksi (951 MPa) | 14% | 35 HRC |
The data table highlights key differences between aluminum and titanium alloys, particularly in tensile strength, elongation, and hardness. Titanium alloys like Ti 6Al-4V offer significantly higher tensile strength and hardness compared to aluminum alloys, making them ideal for high-stress applications. However, aluminum alloys, such as 6061-T651 and 7075-T651, are easier to machine and more cost-effective, with sufficient strength for many industrial uses.
While titanium excels in strength and durability, aluminum’s lighter weight and lower cost make it a practical choice for applications where these factors are prioritized. The choice between these materials depends on the specific requirements of the project, balancing the need for strength, machinability, and budget.
When choosing between aluminum and titanium for your parts, it’s essential to consider several key factors beyond just their shared strengths of high strength and low weight.
Both aluminum and titanium are known for their excellent strength-to-weight ratios, but titanium stands out in critical situations where every gram counts and exceptional strength is required. Titanium’s superior strength allows for the design of components that are both lightweight and incredibly durable, which is why it’s often used in aerospace, medical, and high-performance engineering applications. For example, titanium is ideal for manufacturing medical implants, complex satellite components, and structural parts in aircraft, where reducing weight without sacrificing strength is crucial.
Cost is a significant factor when deciding between these two metals. Aluminum is typically the more cost-effective choice for both machining and 3D printing. It’s widely available, easier to machine, and generally less expensive to produce, making it ideal for large-scale production and cost-sensitive projects. On the other hand, titanium is more expensive due to its higher material and machining costs. However, the value of titanium becomes apparent in applications where its unique properties—such as longevity and durability—can lead to cost savings over time. For instance, in transportation, the lighter weight of titanium parts can result in significant fuel savings, and in high-stress environments, titanium parts often outlast their aluminum counterparts, reducing the need for replacements.
Both aluminum and titanium offer strong corrosion resistance, but titanium excels in harsh environments like saltwater and chemical processing. Aluminum’s natural oxide layer provides good protection in many applications, while titanium's superior resistance and biocompatibility make it ideal for marine, chemical, and medical applications, such as implants and surgical instruments.
Aluminum is easier to machine and more abundant, making it a more environmentally friendly and cost-effective choice, especially in projects where rapid production and sustainability are important considerations. Titanium, while more challenging to machine, provides unmatched performance in high-stress applications, which can justify the additional costs and effort involved in its processing.
Here’s a table that summarizes the advantages and disadvantages of aluminum and titanium:
| Material | Advantages | Disadvantages |
|---|---|---|
| Titanium | - High strength, comparable to or greater than many alloy steels | - Poor chemical reactivity with other materials at high temperatures |
| - High thermal strength, maintains strength at temperatures up to 500°C | - Challenging to process, can cause mold damage due to its hardness | |
| - Excellent low-temperature performance, retains mechanical properties at low and ultra-low temps | - Expensive, limiting its use to high-tech industries like aerospace, petroleum, and chemical applications | |
| - Superior corrosion resistance, especially in marine and harsh chemical environments | ||
| - Good biocompatibility, ideal for medical implants and prosthetics | ||
| Aluminum | - Cost-effective, suitable for budget-conscious projects | - Not as strong as titanium, with significant strength reduction at high temperatures |
| - Easier to process and more suitable for mass production | - More susceptible to corrosion in harsh environments, requiring protective coatings | |
| - Extremely lightweight due to lower density, ideal for applications where weight reduction is key | - May have a shorter lifespan and need more frequent replacement due to fatigue and wear | |
| - Excellent electrical and thermal conductivity, making it ideal for conductors and heat transfer |

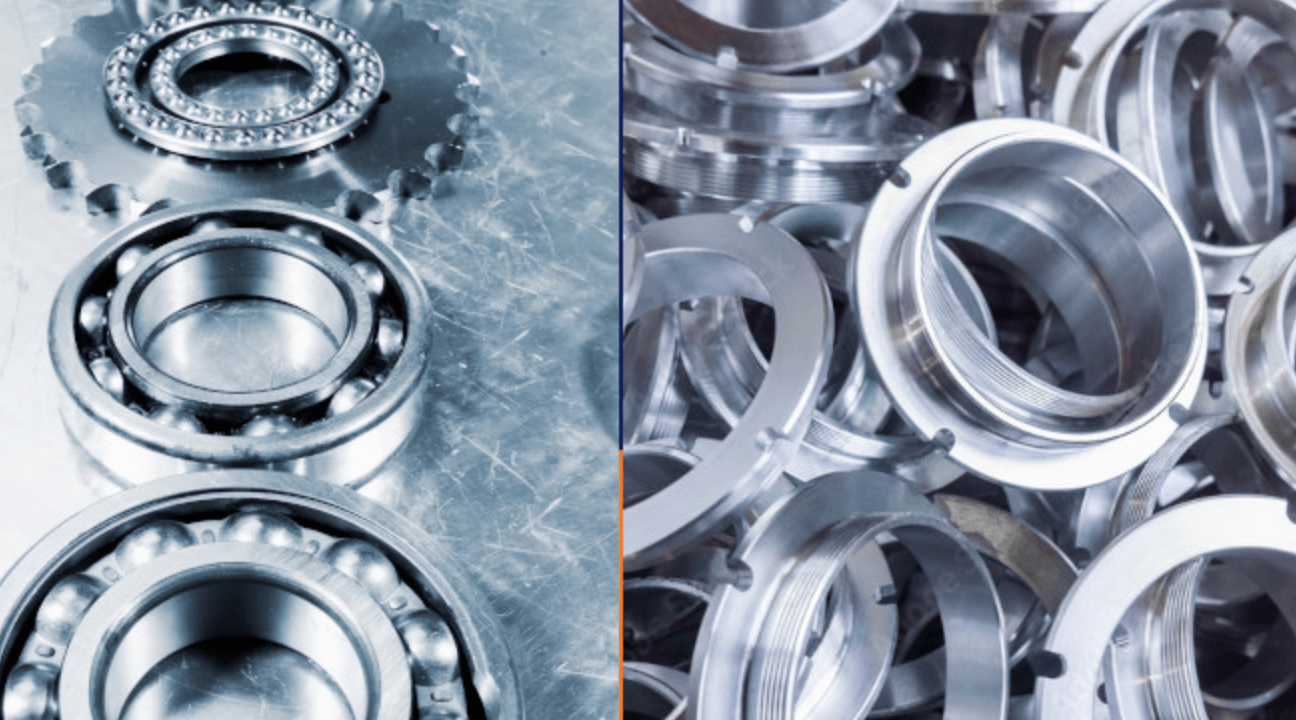

Titanium and aluminum are both versatile metals, but their distinct properties make them suitable for different applications across various industries.
When machining titanium, selecting high-quality carbide or coated tools is essential due to its hardness and the heat generated during cutting. Effective cooling, such as high-pressure coolant systems, is necessary to prevent overheating and reduce tool wear, ensuring precision and extending tool life. Titanium may also require additional finishing processes like polishing or coating to achieve the desired surface quality and corrosion resistance.
For aluminum, its softness allows for the use of more affordable high-speed steel (HSS) or uncoated tools, enabling faster machining and lower costs. Standard cooling methods are typically sufficient, though a light lubricant can enhance the surface finish and prolong tool life. Aluminum is easier to finish, with options like anodizing, painting, or powder coating available to improve its appearance and corrosion resistance.
By carefully selecting the right tools, cooling methods, and finishing techniques, manufacturers can optimize CNC machining processes for both titanium and aluminum, achieving high-quality results while minimizing costs and production time.
