How to Countersink a Hole in Metal: A Step-by-Step Guide

Countersinking is a crucial process in metalworking that allows screws or rivets to sit flush with or below the metal surface. Whether you're working on an industrial project or a DIY task, learning how to properly countersink metal can improve both the aesthetics and functionality of your work. Achieving a precise, clean countersink ensures that screws are secure, flush, and reduces the risk of injury or material damage. In this guide, we will take you through a detailed, step-by-step process for countersinking metal, including the tools needed, techniques, and essential safety precautions.

What is Countersinking?

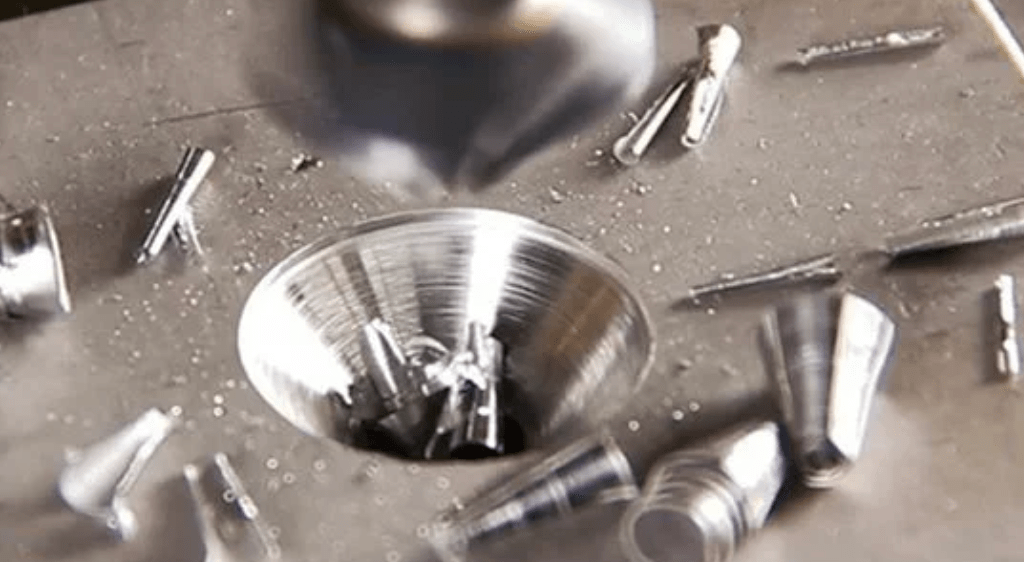

Countersinking refers to creating a conical recess in the surface of a material—typically metal—so that the head of a screw or rivet sits flush with or below the surface. This is often used in scenarios where protruding screws could pose a safety risk or diminish the aesthetic quality of the finished product. Unlike counterboring, which creates a flat-bottomed recess, countersinking results in a conical shape.

The standard angles for countersinking in metal are 82° for standard screws and 90° for metric screws. Getting this angle right is crucial for a smooth fit.

Tools You’ll Need for Countersinking in Metal

Before starting, it’s important to gather the right tools. Here's what you'll need:

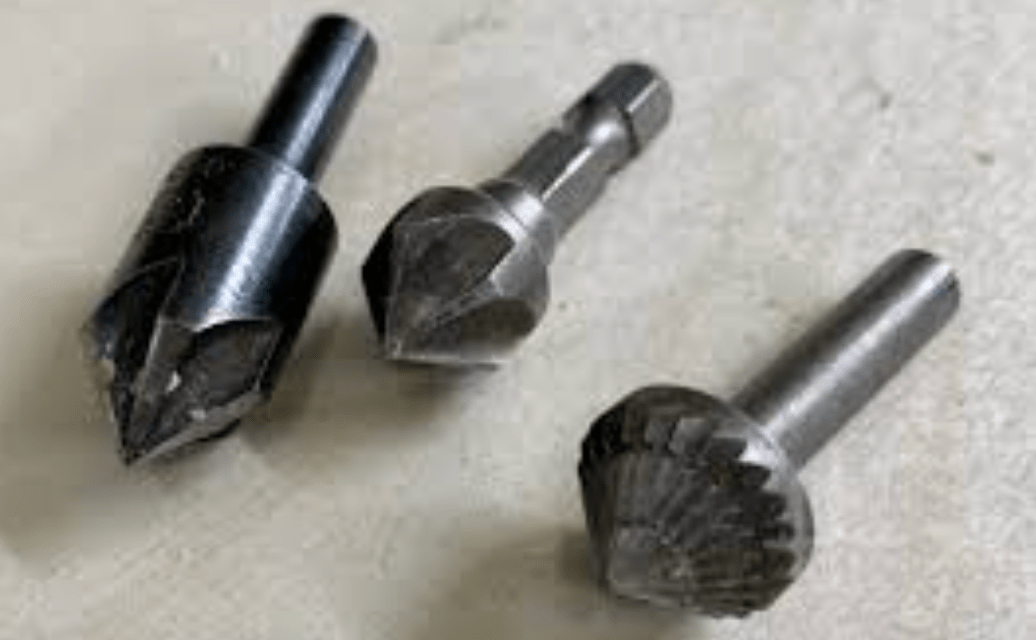

• Countersink Drill Bit: Choose the appropriate material for your drill bit—carbide for harder metals, high-speed steel for softer metals like aluminum, and cobalt for heat resistance when drilling metals like stainless steel?.
• Pilot Drill Bit: The size of your pilot bit should match the screw shaft diameter, or be slightly smaller by about 1.6mm.
• Lubricant: Apply a lubricant such as cutting oil or WD-40 to reduce heat and friction during the drilling process.
• Drill Press (Optional): A drill press allows for precise depth control, making it easier to achieve uniform countersinks.
• Deburring Tool: After drilling, use a deburring tool to smooth the edges around the hole, ensuring a professional finish.

Step-by-Step Guide to Countersinking a Hole in Metal

Step 1: Drill the Pilot Hole

Start by drilling a pilot hole at the marked location on your metal surface. This is the most critical step as it ensures precision for the countersink. The size of the pilot hole should match the screw shaft diameter. Before drilling, secure the metal piece using clamps to prevent movement and mark the exact drilling point using a center punch.

While drilling, hold the drill perpendicular to the metal surface, applying even pressure to reach the correct depth. Lubrication is key here to prevent overheating and extend the life of your drill bits.

Step 2: Check the Countersink Angle

It’s important to choose the right angle for your countersink, based on the screws you are using. For standard screws, use an 82° angle, while metric screws generally require a 90° angle. Using the incorrect angle will result in a poor fit and an unsightly finish.

Step 3: Select the Correct Countersink Drill Bit

Choose a drill bit with a diameter that matches or is slightly larger than the head of your screw. To measure the screw head accurately, use a caliper and ensure the screw head fits snugly without protruding from the surface. The goal is to create a recess deep enough for the screw head to sit flush with the metal?.

Step 4: Insert the Countersink Drill Bit into the Drill Chuck

Insert the countersink bit into your drill’s chuck. Ensure that it is tightly secured using a chuck key or by hand, depending on your drill model. It’s important to avoid overtightening, which can make it difficult to remove the bit later.

Step 5: Adjust the Drill to the Correct Depth

Before starting the countersink, set the drill to the correct depth. For most applications, adjusting the depth to approximately 4mm should suffice. Ensure that the depth allows the screw head to sit flush without leaving any gap or causing the screw to protrude from the surface.

If you’re using a drill press, set the depth stop to maintain consistent results across multiple holes. If you’re using a hand drill, consider marking the bit with tape as a depth guide?.

Step 6: Drill the Countersink Hole

Now, gently guide the countersink bit into the pilot hole and apply consistent pressure as you drill. Monitor your progress closely, stopping periodically to check the depth of the hole. Continue drilling until you achieve the desired depth. The hole should be deep enough to allow the screw to sit flush or just below the metal surface.

Step 7: Inspect the Countersink Hole

After drilling, insert the screw or fastener into the hole to ensure it sits correctly. The head should be flush with or slightly below the metal surface. If it protrudes, you may need to drill a bit deeper. Conversely, if the screw sinks too deep, you may have to start over or use a washer to adjust the fit?.

Countersunk Hole Size Chart

Size Charts For Typical 82° Countersink Dimensions

Size Charts For Typical 90° Countersink Dimensions

Size Charts For Typical 100° Countersink Dimensions

Common Mistakes to Avoid When Countersinking a Hole in Metal

When countersinking a hole in metal, achieving precision is crucial for both functionality and appearance. Below are some common mistakes that people often make, along with strategies to avoid them.

1. Over-Drilling

One of the most frequent mistakes when countersinking is drilling the hole too deep, causing the screw to sit too low in the material. Over-drilling not only ruins the aesthetic of a flush screw fit but can also weaken the structural integrity of the metal part. If the countersink is too deep, the screw or fastener may not grip securely, leading to possible loosening over time.

2. Incorrect Angle or Bit Size

Using the wrong countersink angle or drill bit size is another common issue. The angle of the countersink must match the screw's head for a proper fit. For instance, most standard screws require an 82° angle, while metric screws typically require a 90° angle. Using an incorrect angle may cause the screw head to protrude or fit improperly, resulting in poor fastening and a less professional appearance.

3. Not Securing the Workpiece

Another major error is failing to secure the metal workpiece before drilling. Without proper clamping, the metal can slip or shift during drilling, which leads to inaccurate holes and increases the risk of injury. Even slight movement during drilling can cause the bit to wander, making it difficult to achieve a clean, precise hole.

Expanded Safety Precautions for Countersinking Metal

When working with metal, especially during processes like drilling and countersinking, safety should always be the top priority. Metalworking can produce sharp shards, flying debris, and hazardous conditions that could lead to serious injuries if not managed properly. Below are essential safety precautions to follow for a safe and productive work environment.

1. Wear Safety Gear

Proper personal protective equipment (PPE) is crucial when working with metal. The high-speed drilling process can generate flying metal shards that can cause severe injuries, especially to the eyes and hands.

2. Secure the Workpiece

One of the most important safety practices when countersinking metal is securing the workpiece. If the metal moves or slips during drilling, it can lead to poor results, damage to the tool, and even dangerous accidents. A moving workpiece can cause the drill to slip, leading to injury or ruining the material.

3. Keep the Workspace Clean

Maintaining a clean workspace is not only essential for efficiency but also for safety. Drilling into metal produces shavings, chips, and debris that can create slipping hazards, block visibility, and even cause harm if left unattended.

Conclusion

Countersinking a hole in metal can significantly improve the appearance and functionality of your project. With the right tools, technique, and safety precautions, you can achieve professional, clean results that enhance the overall quality of your work. Whether you're countersinking for aesthetic reasons or functional needs, following this guide will ensure a smooth, flush fit every time.

If you’re interested in taking your projects further and need high-precision machining, consider exploring how Dadesin's CNC machining services can support your needs. We’re here to offer guidance or help with any questions. Feel free to share your thoughts in the comments, and don’t hesitate to reach out if you'd like more insights into professional machining techniques.

FAQs

Q: What are the best metal materials for countersinking?

A: The best metals for countersinking include aluminum, steel, stainless steel, brass, copper, titanium, and cast iron. Each metal requires specific tools and techniques.

Q: What are the standard countersink angles used in different applications?

A: The most common countersink angles are 60°, 75°, 82°, 90°, and 120°, each suited to specific uses:

• 60° – Primarily used for deburring or removing sharp edges around a drilled hole in metals?
• 75° – Ideal for rivet heads, ensuring they sit flush with the material in various applications, such as structural steel and solid rivets.
• 82° – The standard angle for American screws and fasteners, widely used in general metalworking and woodwork.
• 90° – Common in metric screws and used in many European applications. It provides a flush fit for most fasteners.
• 120° – Primarily used for sheet metal rivets, including blind rivets, where a wider, shallower angle is needed to accommodate the fastener?.

Q: What’s the difference between countersink holes and counterbore holes?

A: Countersink holes have a conical recess to accommodate fasteners with angled heads, while counterbore holes have a cylindrical recess for fasteners with flat-bottomed heads. Both are used to allow fasteners to sit flush or below the surface for a clean finish.
